| 1968 Beechcraft Bonanza E33 Aircraft |
| Aircraft Type | Single Engine Propeller |
| Make | Beechcraft |
| Model | Bonanza E33 |
| Condition | Used Aircraft |
| Sale Type | For Sale |
| Currency | US $ |
| Price | $219,900 |
| Location | Texas, United States |
| Registration No | N8481N |
| Serial Number | CD-1175 |
| Year Built | 1968 |
| Total Time Airframe | 6708 |
| Comments |
|---|
NEW ARRIVAL! GTN650 - G500 - IO-550 AirplanesUSA Aircraft Sales proudly presents this 1968 E33 Bonanza with a 300 HP Continental IO-550 to market. An upgraded Garmin GTN 650 and Garmin G500 PFD are complemented with a 2-Axis STEC Autopilot and recent top and bottom engine overhaul. Dual Instruction, Export, and Worldwide delivery are available. All trades considered. |
| Engine Specifications |
|---|
Gold Medallion Teledyne Continental IO-550-B12B D'Shannon STC SA2200SW
1400 SNEW in 1998
300 Horsepower
Serial Number: 297051-R
533 Hours Since Top and Bottom Overhaul in 2017
Compressions at 2023 Annual: #1-67, #2-70, #3-72, #4-66, #5-73, #6-68 Prop(s):
McCauley 3-Blade Constant Speed Propeller
Model: 3A32C406-C
Serial Number: 980818
Governor Resealed in February, 2020
1356 Hours SNEW in 1998 |

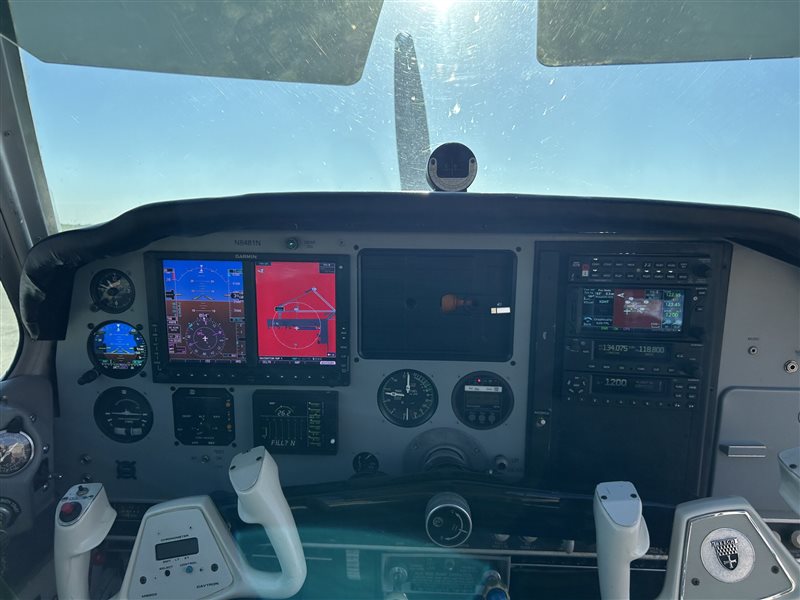

| Avionics |
|---|
Garmin G500 Primary Flight Display
Garmin GTN650 GPS/NAV/COMM/WASS Interfaced with G500
Garmin GI275 Backup Electronic Flight Instrument
Garmin GTX 345 Transponder with ADS-B IN/OUT
Garmin GMA 350 Audio Panel with Voice Command
Garmin GNC 225 Digital NAV/COMM #2
Garmin GRS-77 AHRS Heading Reference Unit
Garmin GDC-74 Air Data Computer
Garmin GSB 15 USB Power
STEC 50 2-Axis Autopilot
JPI EDM 730 Engine Monitor with Fuel Computer
Panel Mounted Guardian IPad Mini Mount
IFR Certification Completed March, 2024 |
| Interior |
|---|

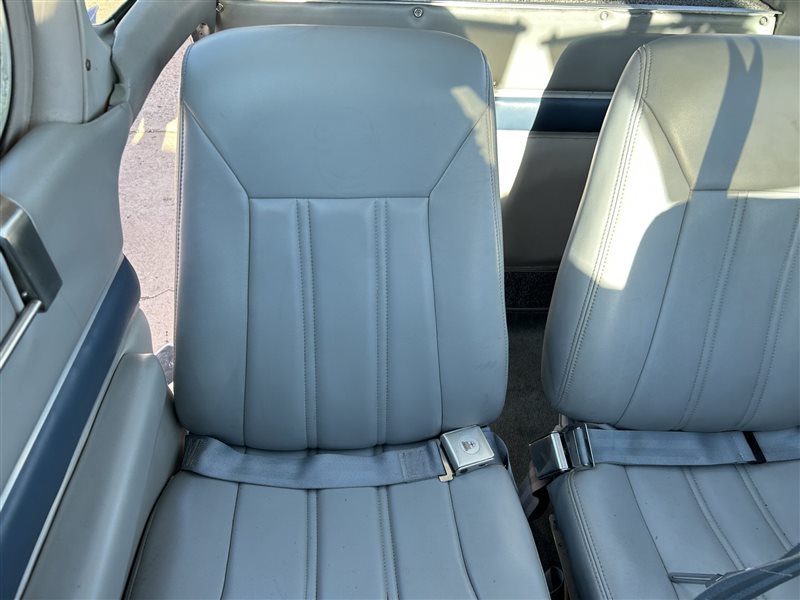

Gray Vinyl Seats with matching Gray Carpet and Side Panels Good Condition |
| Exterior |
|---|
Painted in 1997, Flight Controls Balanced
Imron White with Blue and Green Stripes Good Condition |
| Additional Features |
|---|
Dual Yokes
M20 Air/Oil Separator
Beryl D'Shannon Left and Right Cockpit Side Windows STC SA2870WE
Beryl D'Shannon Baffling
Beryl D'Shannon Lower Cowling Access Panels STC SA414CH
Beech Shoulder Harness Kit for Pilot and Co-Pilot
Aero Engineering Rudder Hinge Brackets
Landing Gear Warning Horn
Cleveland Brakes STC SA116L
Whelen Anti-Collision Strobe Light System STC SA615EA and STC SA800EA
Aerotech Fuel Cells New in 1998
Shoulder Harnesses Beech Kit 55-5012-7P
Shimmy Damper
Bendix Magneto Switch
Peterson Auto Fuel STC SA2049CE
Horizon Instruments Digital Tachometer/RPM Gauge |
*PLEASE NOTE: Aircraft specifications are subject to verification by the purchaser. It is up to you as the purchaser to conduct your due diligence. Unless given to you in writing by the seller, no warranties are implied or given. Aircraft or parts may be withdrawn from sale at any time. If the price does not contain the notation that it is the total price, the price may or may not include costs such as Stamp Duty, Transfer fees, GST and other State or Federal charges. Please confirm price, fees, charges and features with the seller of the Aircraft or Part.
